How to convert from single-end to differential signaling?
Last Updated 5 years ago
By default HIL device uses single-ended signaling IO. In order to work with differential signaling it is necessary to use an additional output pin.

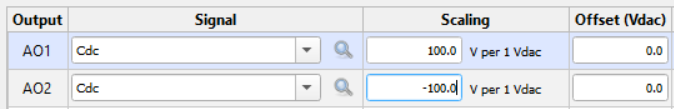

In SCADA Model Settings Choose your target signal among Analog Outputs and set it on two AO pins. Change scaling sign to invert the signal:

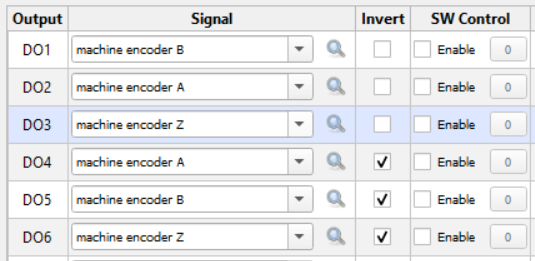

In case of digital outputs the original signal needs to be inverted. Typical application is to get a differential signal for ABZ encoder output channels:
